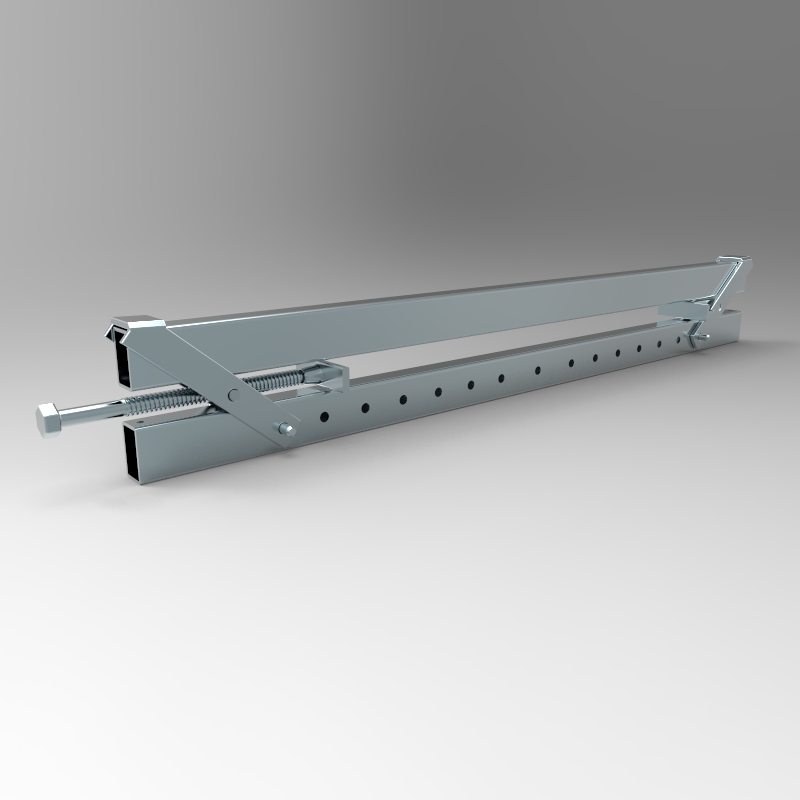

Edge Gluing Clamp L1000 (700 mm)

1 set – Edge Gluing Clamp L1000 (700 mm) includes:

• Tube without holes L1000 – 1 piece
• Tube with holes L1000 – 1 piece
• Levers for Edge Gluing Clamp – 1 piece

Usage and Performance of Edge Gluing Clamps L1000 (700 mm)

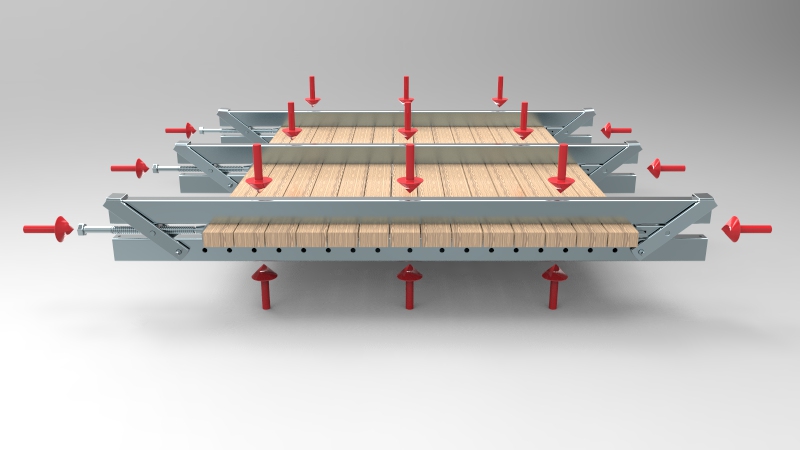

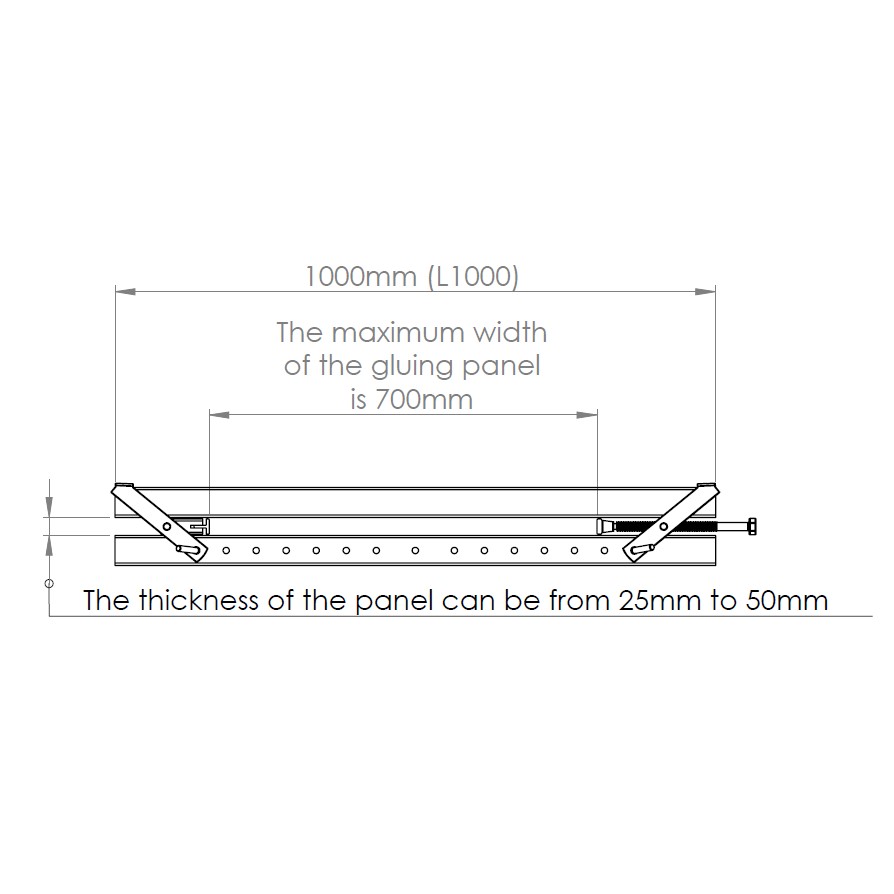

With the L1000 (700 mm) edge gluing clamp, you can glue almost all types of wood. As a result, the strong thread and thick tubes generate high surface pressure, ensuring complete glue squeeze-out from the joint. This results in a clean and sturdy bond. The clamp allows for gluing panels up to 700 mm wide, with any length and thickness ranging from 25 mm (or less with additional padding) to 50 mm.

Example of Use Edge Gluing Clamps L1000 (700 mm)

For a glued panel that is 500 mm wide and 2000 mm long, we recommend using up to 5 sets of edge gluing clamps. However, the number of clamps needed depends on the thickness, width, and number of glued panels, as well as the hardness of the wood. In extreme cases, additional classic clamps can be used to ensure a secure bond.

Productivity with L1000 Clamps

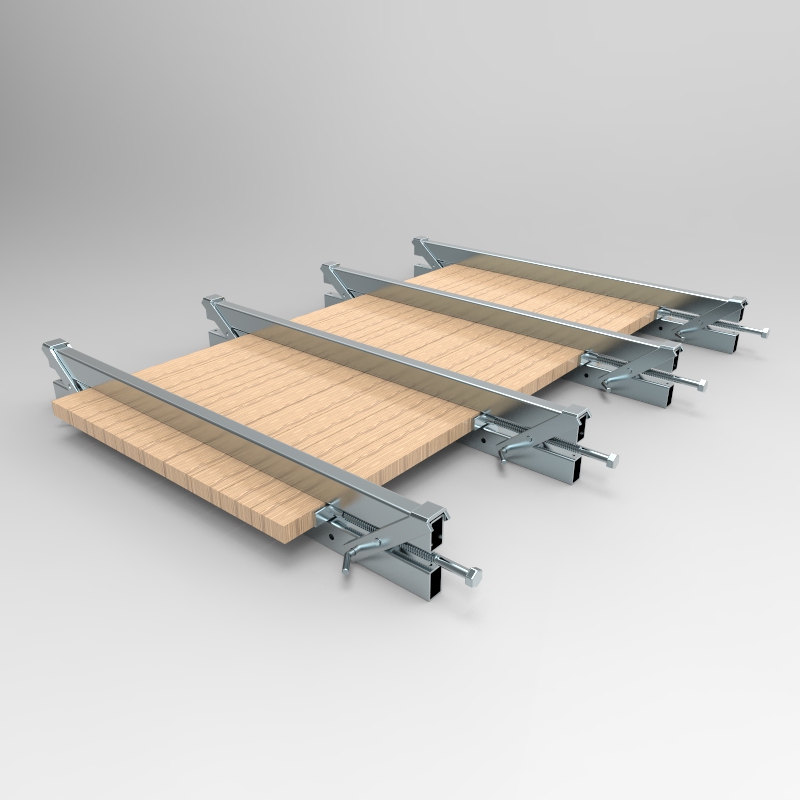

Additionally, using the additional L1000 (700 mm) tube with a levers allows you to glue multiple panels at once. Therefore, we recommend gluing in a maximum of three rows, which saves time and increases productivity. You can find more details and purchase this product here.

Exclusive Availability

Our edge gluing clamps are a proprietary product, available exclusively from us and not sold by other retailers. However, due to small production batches, the product may occasionally be out of stock. Nevertheless, feel free to contact us to check availability or to pre-order the product.

Shipping

We ship products throughout the European Union and worldwide. Generally, in-stock items are typically dispatched within 1 to 3 business days. You can read more about our shipping policies here.

Warranty

The manufacturer of this product is KRDR d.o.o., which markets it under the DELTEH brand. Moreover, we guarantee that our products are free from manufacturing and material defects. As such, the warranty is valid for 2 years. More information about our warranty policies can be found here.
